Mondraker offers the perfect start for your new custom gravel bike: the Arid Carbon Unlimited Eclipse frameset. A unique design based on a raw carbon look and a shimmering red clear coat.

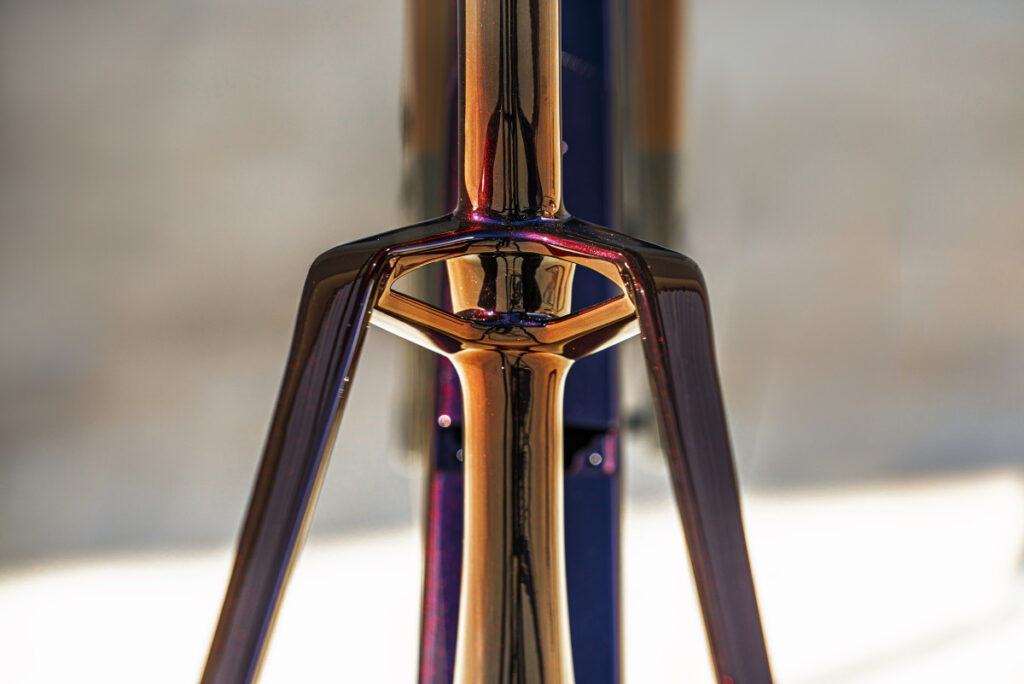

The frameset includes an evolved version of the Stealth Air Carbon fork (as used across both the Arid and Dusty ranges). This new, sleeker design removes the side mounts resulting in a weight reduction of about 60 grams.
Naturally, all cables and lines run through the frame with the help of the so called HHG Cable Routing System, emphasizing the design and ensuring a clean look. The Arid Carbon has a total of 6 mounting points for water bottles or similar accessories on the frame.
A key feature is the integrated storage compartment (Carry-On System), new to Mondraker. The storage compartment is accessible via a water and dustproof flap in the down tube.
The finish of the Arid frameset is handcrafted in the Blue Lab paint studios (see video below) as part of their own colouring system. This makes it an absolute wannahave for those who want to have an extraordinary frameset, a limited edition, a visual highlight and a great start of an exclusive bike.
Specifications
Material frame & fork: Stealth Air carbon, head tube 1 1/8″ – 1.5″ tapered, headset fully integrated 40x52x7 for internal cable routing
Seat tube (inner diameter): 27.2 mm, integrated seat clamp,
Bottom bracket standard: 85.5 mm T47 bottom bracket
Flat mount disc brake front & rear, max rotor size 160 mm,
One-speed groupset only
Axle fork 12×100 mm, frame 12×142 mm, maximum tire width: 50 mm (45 mm recommended)
2x bottle cage mounts
Pannier mounting: yes (total of 6 mounting points for water bottles and other accessories)
Geometry see website link below
Colours Translucent Red carbon, black decals, finish glossy.
Weight: 1.524 gr (size M/L, frame without fork including thru axle, seat clamp, derailleur hanger)
Price*: € 2.499 (including fork and stem)
More information: https://mondraker.com/nl/en/arid-carbon-unlimited
*Manufacturer price, this could vary by country, pls check your local supplier
Images/video: Mondraker
