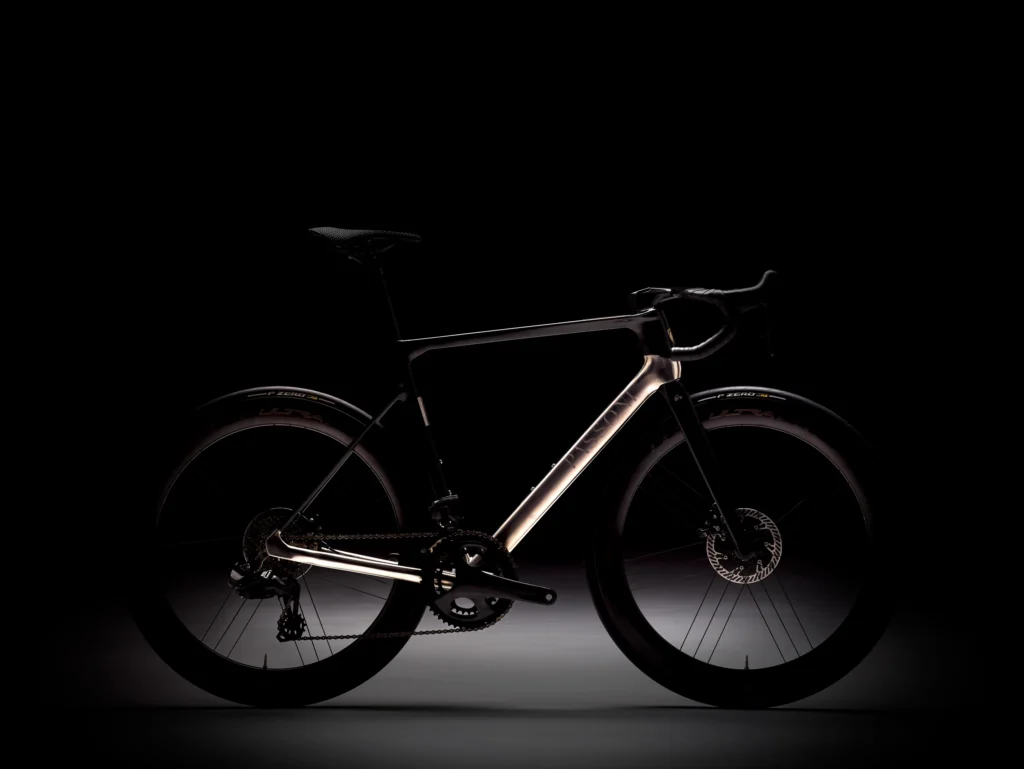

You have nice bikes, you have great bikes, you have excellent bikes and you have super bikes. The new Animus Titanium of Passoni belongs to the last category. Where craftmanship, technology and timeless elegance meet.

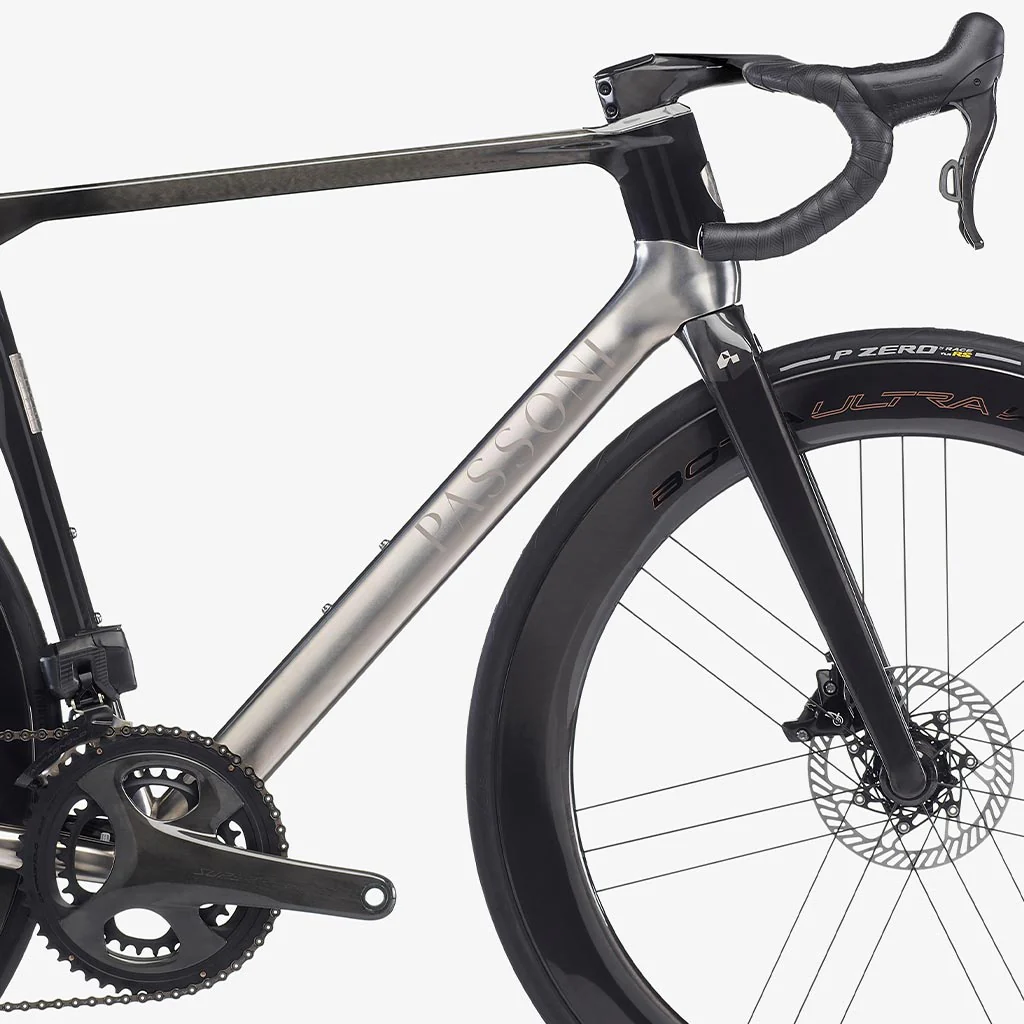

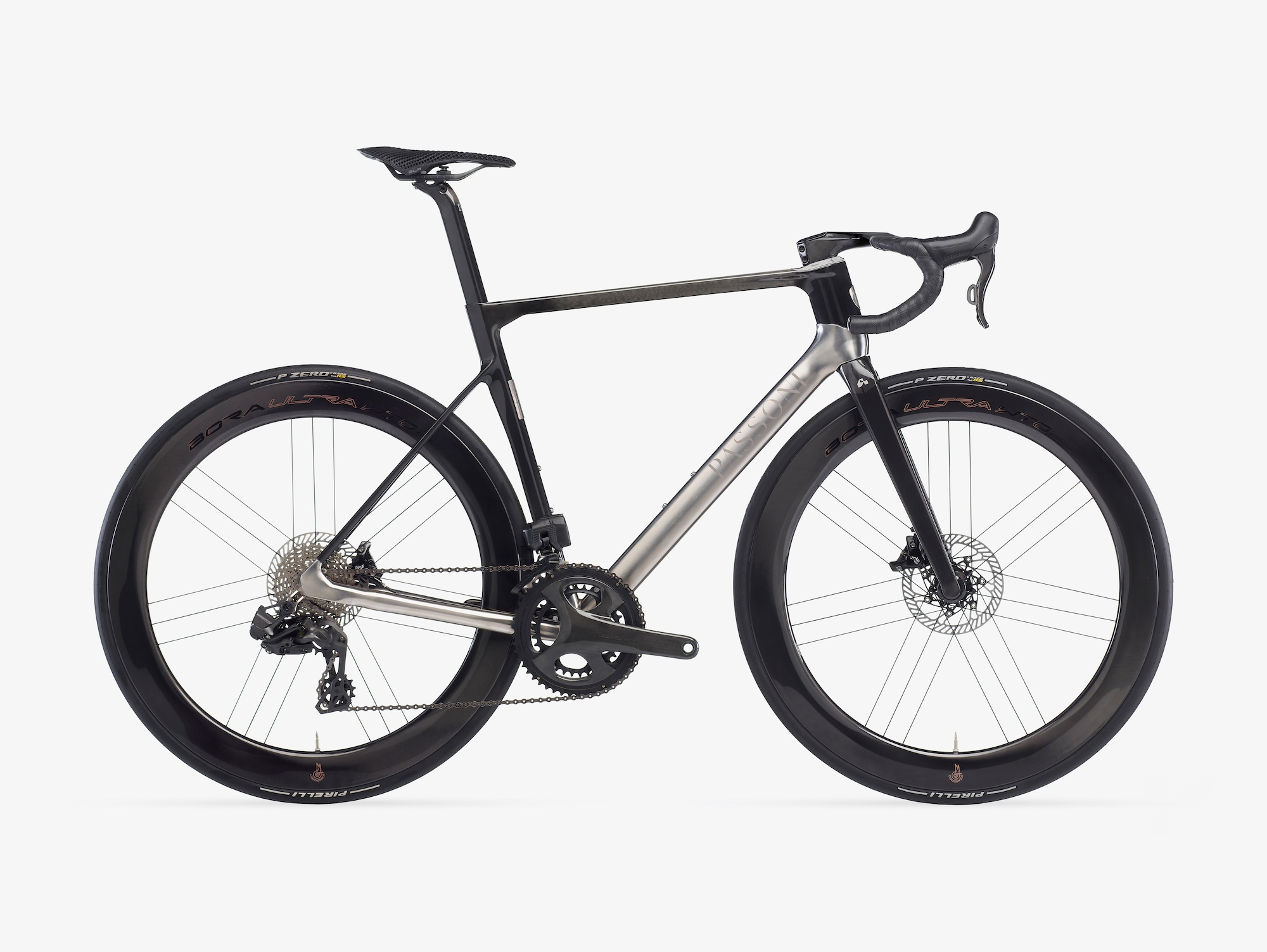

The AT-01 is the first aeroframe made by Passoni. It’s design is based on two of Passoni’s most significant frames, the Mito and XXTi. Both models combine the unique feel of titanium with the possibilities offered by advanced composite materials.

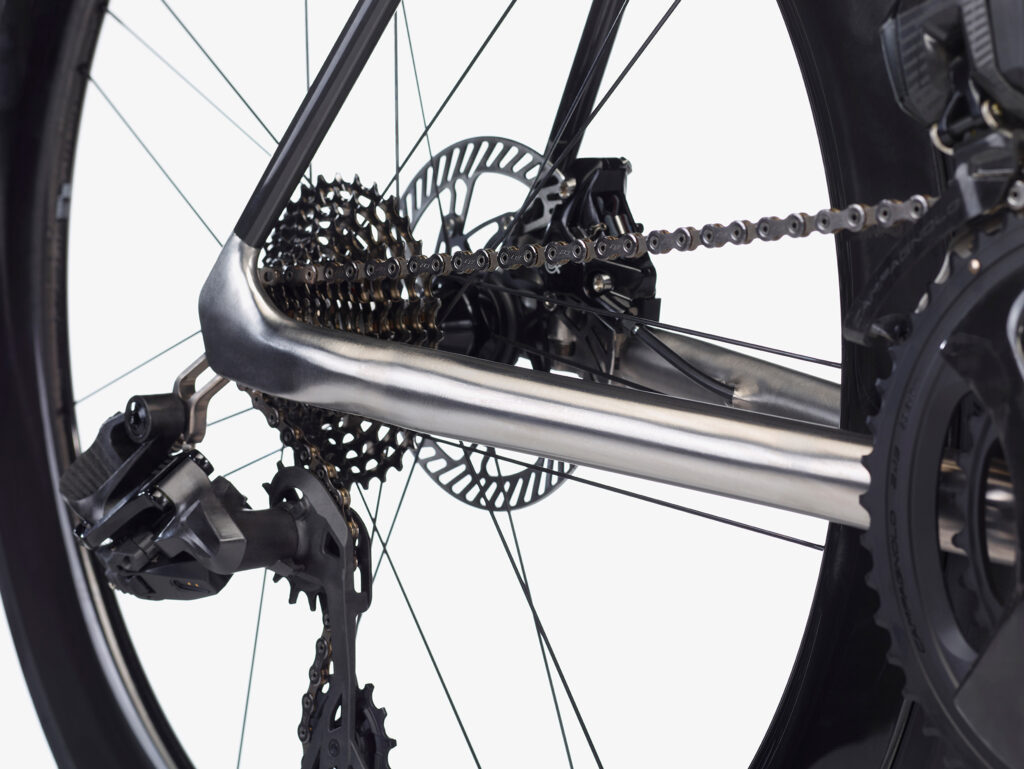

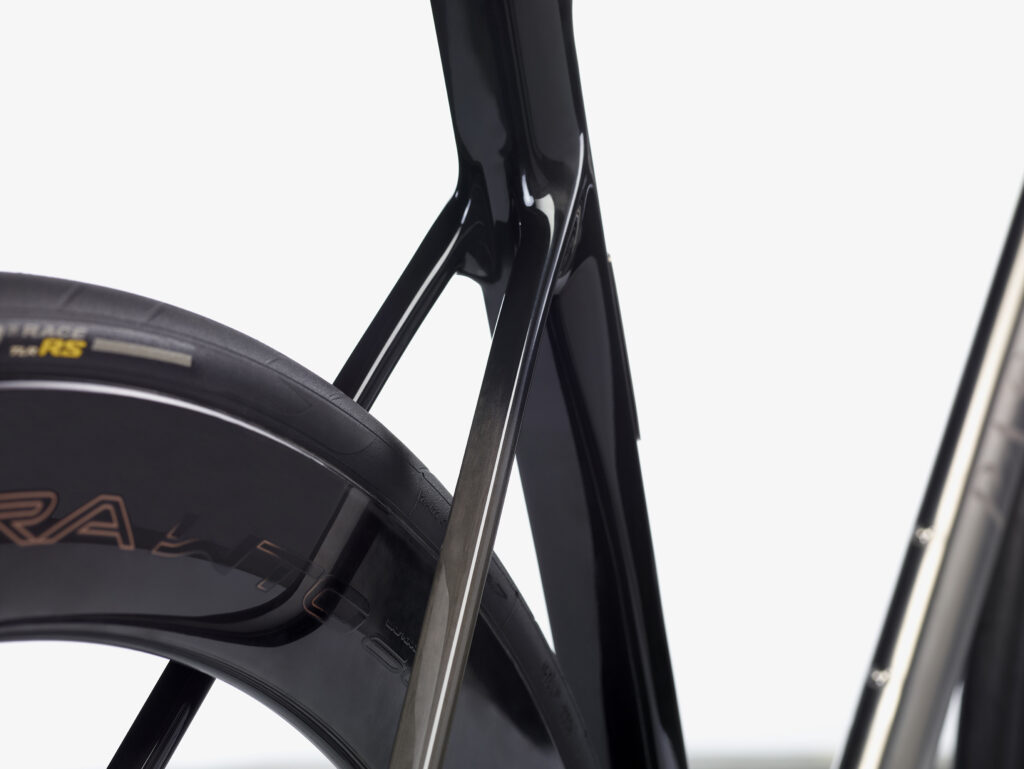

The AT-01 takes this lineage and refines it further, introducing a new balance between form and function. The lower triangle, crafted entirely in titanium, ensures precision, sensitivity and long-lasting durability. The upper triangle, made of high modulus monocoque carbon, offers reduced weight and a distinctly aerodynamic profile.

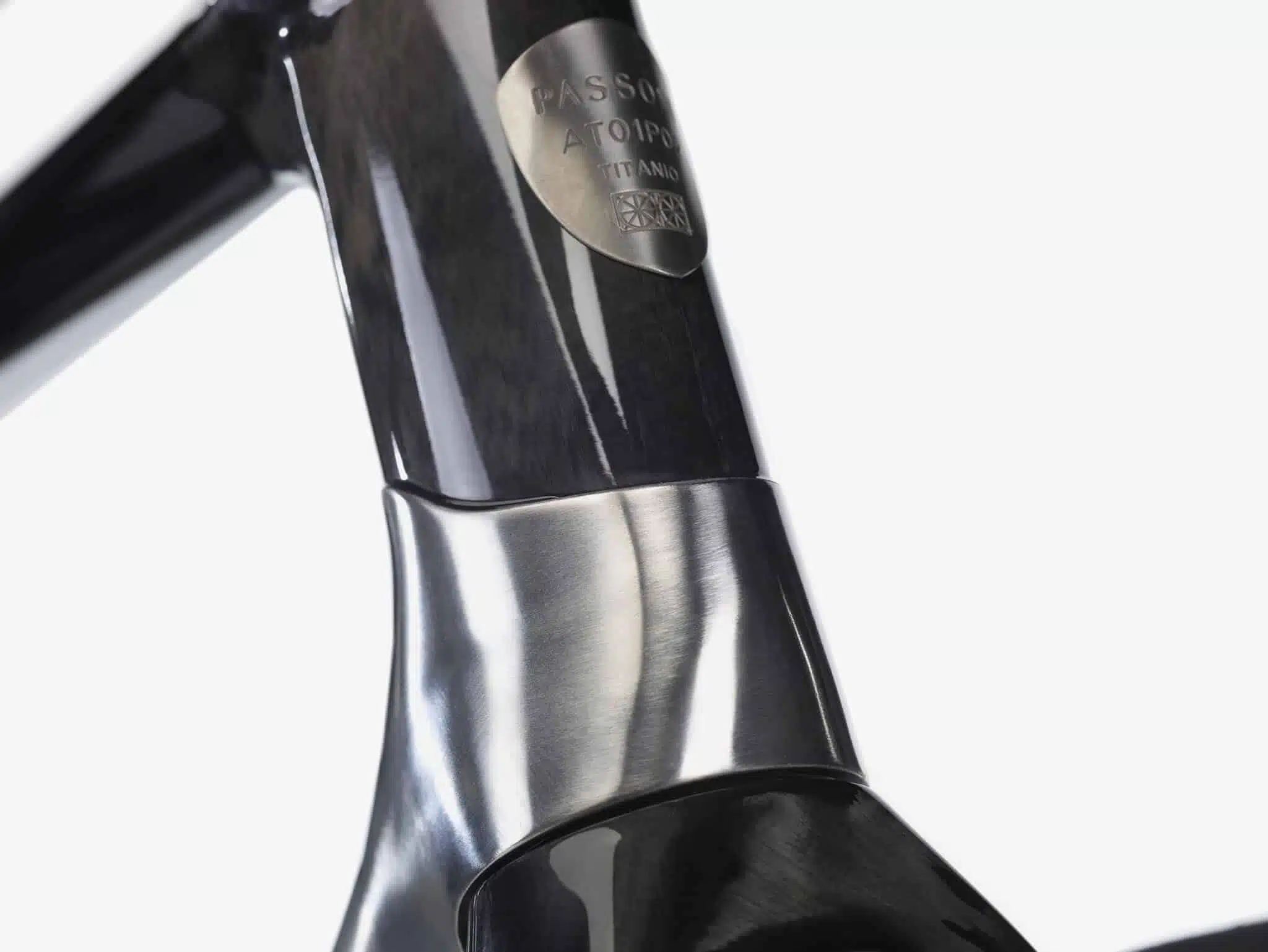

The titanium components like the head tube and dropouts are made of grade 5 titanium and further refined using CNC machining and 3D printing. Not only for the looks but as integrated parts of the Animus Titanium overall concept. The created shapes are organic, harmonious and a feast to the eye. Especially assembled with the new Campagnolo Super Record 13-speed group featuring Bora Ultra WTO 60 wheels.
The AT-01 is offered in standard geometries but also available in full custom sizing to fit rider and style. As such, Passoni sees the Animus Titanium more like an extension of the rider. A combined performance for competition or more relaxed rides. Or just to look at in the garage. For hours.
Specifications
Frame: front triangle titanium tube downtube Ø 44mm aero-shaped, rear triangle titanium tubes chainstays Ø 25.4 mm, aero-shaped 30 x 21mm, bottom bracket shell titanium grade 9 CNC machined (Passoni engraved logo and frame code, T47), head tube titanium grade 5, 3D printed and CNC machined, bearings Ø 1”1/2, dropouts titanium grade 5, 3D print and CNC machined, for disc brake thru-axle, high modulus monocoque carbon aero-shaped frame (handmade in Italy)
Fork: Passoni FP01 full carbon Ø 56 mm, offset 45mm, round steerer tube, flat mount 160mm only, 32 mm measured tire dimension, thru-axle 100 x 12 customised Passoni

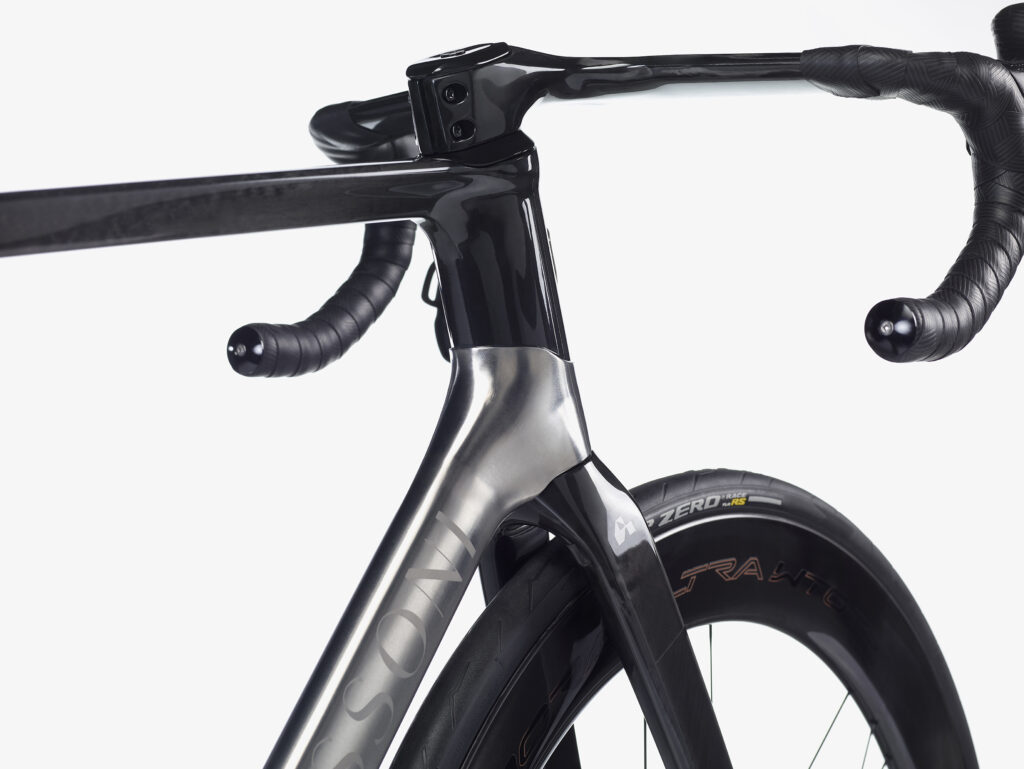

Cockpit: Passoni CP01 full carbon integrated handlebar
Colour option: 1
Frame weight: 1.200 grams
Price*: from € 9.900 (frame)
More information: https://passoni.com/en/ready-to-ride-bikes/animustitanium01
*Manufacturer price, this could vary by country, pls check your local supplier
Images/video: Passoni
