Whenever, wherever you go, take your bike with you. That’s the philosophy behind the new Septimer Break-Away Carbon frameset. Tom Ritchey designed this bike to be the one bike you’ll ever need, to seek for new adventures in undiscovered areas. Until now.

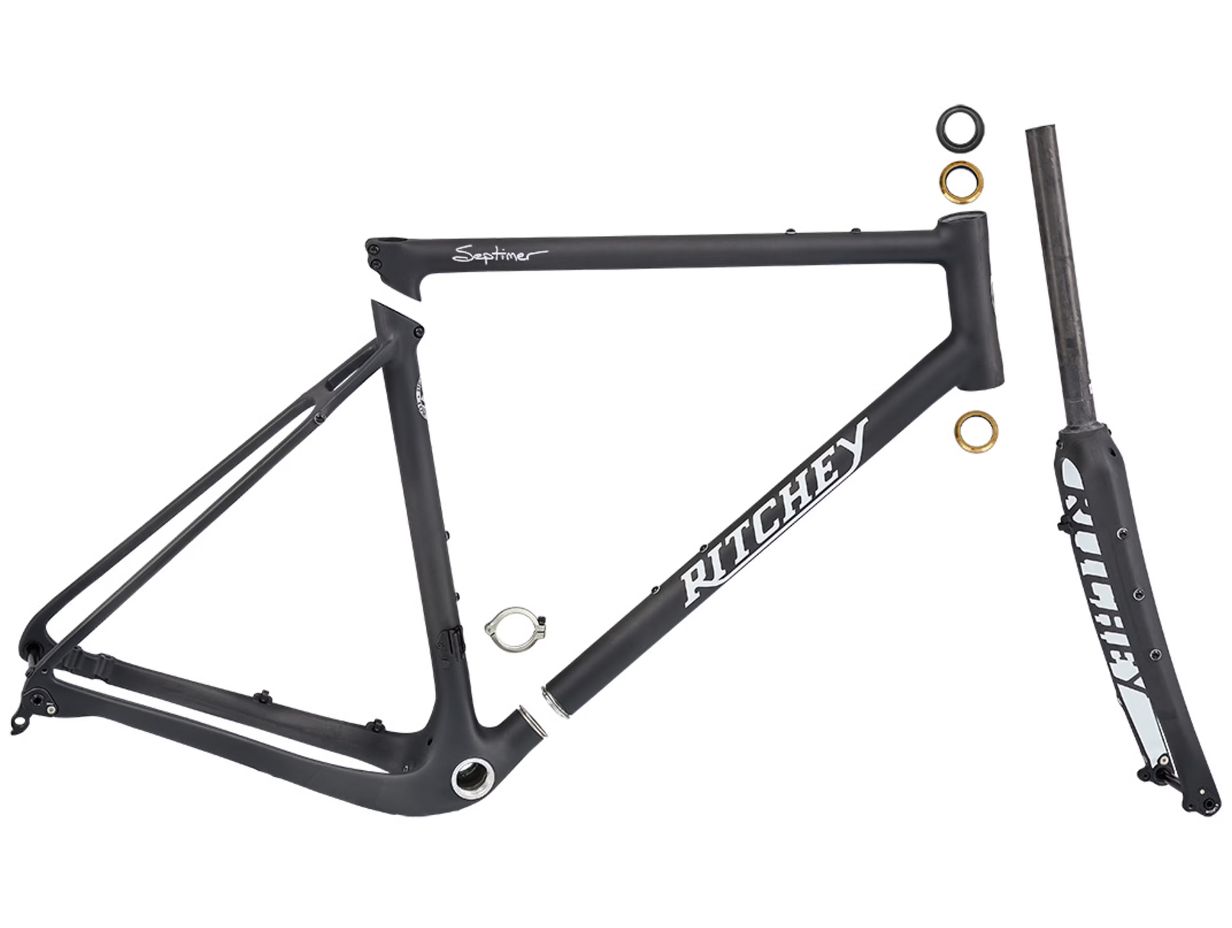

Ritchey’s Septimer, named after the pass between Switzerland and Italy, gives you a lightweight carbon fiber frame and fork, ideal for attacking this ancient climb. Wide tyres, up till 700 x 48c, will give you sufficient comfort to go offroad. But the beauty of the concept is the easiness of assembling and disassembling the bike. It’s patented Break-Away system allows you to fit the bike in the dedicated travel case. Cable routing is external so that won’t be a problem. And the multiple mounts keep your gear within easy reach.
The bike is compatible with both double and mono cranks so up to you to select the gears for your next adventure.
Specifications
Frame: patented Ritchey Break-Away® design, carbon fiber with stainless steel joints, 27.2mm seat tube with integrated seat collar, bb 68 mm threaded, 142mm spacing (12mm alloy thru-axle included), 1x or 2x chainrings, min/max ring size single 36 to 46t (chain line 49.7mm), double 46/30t to 50/34t (chain line 47mm), not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes), external cable routing for semi-wireless Di2 group sets (only compatible with Shimano Di2 EW-SD300 wire for 12-speed), replaceable derailleur hanger, removable front derailleur mount, WCS headset included, downtube hinge clamp included.
Fork: Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts, 1-1/8″ straight steerer, 100mm spacing (12mm alloy thru-axle included), max payload 3 kg per side
Tire compatibility: 700 x 48c tire clearance
Brake Compatibility: flat-mount brakes front and rear 140 mm (160 mm max – adapters available separately), frame equipped for full external rear brake hose, for both hydraulic and mechanical brakes.
Colour: black & white
Available sizes: S / M / L / XL
Packs into included travel case 8.5” / 21.6 cm W x 26.5” / 67.3 cm H x 31” / 78.8 cmL w/ wheels. See video below.
Frame weight: 1.360 gr (size L – w/o thru-axle)
Fork weight: 440 gr (uncut w/o thru-axle)
Price*: € 3.427,40
More information: https://ritcheylogic.com/bike/frames/septimer-break-away-carbon-frameset
*Manufacturer price, this could vary by country, pls check your local supplier
Images/video: Ritchey
